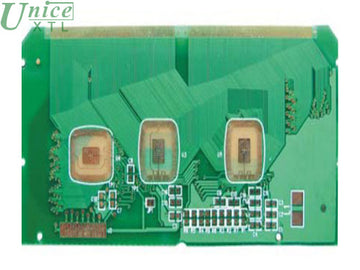

Bonding board
High-performance six-layer PCB with precise impedance control and immersion gold surface finish, designed for advanced electronic applications. We provide reliable quality, competitive pricing, and professional customization services to meet your specific project requirements.
- Precise impedance control (±10%)
- Immersion gold surface finish, excellent solderability
- High reliability for high-speed and high-frequency applications
- Strict quality control and 100% electrical testing
- Support custom specifications and small/medium batch production

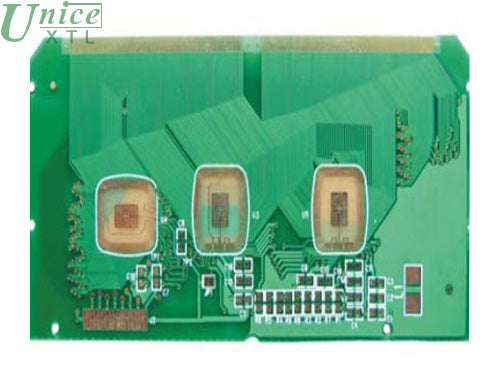

Bonding board
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
Product Details
| Layers | 6 Layers | Material | FR-4 (TG 150/170) / High TG Material |
| Surface Finish | Immersion Gold (ENIG) | Impedance Control | Yes (±10%) |
| Board Thickness | 1.6 mm (Customizable) | Min Line Width/Spacing | 3 mil / 3 mil |
| Copper Weight | 1 oz (Outer), 1 oz (Inner) | Board Size | Max 500 mm × 500 mm |
| Min Hole Size | 0.2 mm | Application |
Communication equipment, industrial control, automotive electronics, consumer electronics, etc. |
